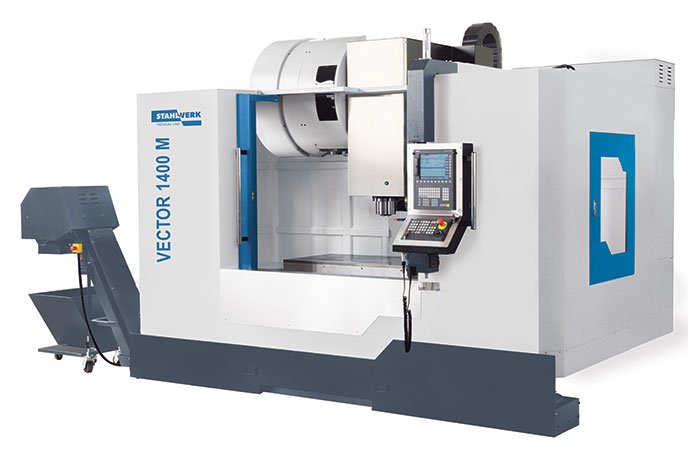

he Vector 1300/1400 series is the perfect solution for machining very large and heavy workpieces. The innovative design of the machine base made of high-quality Meehanite casting with a low center of gravity, and the use of only the highest quality components guarantee the consistently high precision even in multi-shift production. Thanks to a wide range of accessories, the machining centers become a tailor-made complete solution for specific applications. KNUTH also offer automation solutions for this series, with which you can increase your productivity even more.







  • Spindle on multiple bearings ensures minimal vibrations
  • 30-bar CTS to ensure optimum machining quality
  • Designed for multi-shift operation
  • Many customization and automation possibilities
  • 2-year standard warranty
Table dimensions 1300 x 600 mm
Travel X-axis 1220 mm
Spindle speed 10’000 1/min
Spindle mount SK 40 ISO 7388-1 (DIN 69871)
Main drive, continuous load 12 kW
Weight 6500 kg
