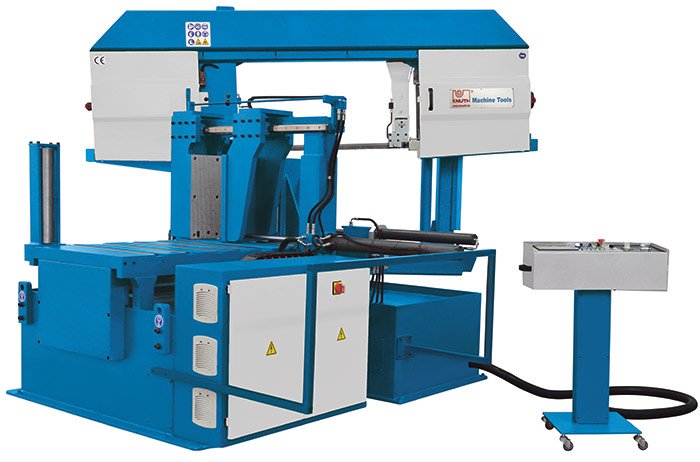

The ABS S NC is a high-performance production band saw with a dual column design. The material is fed via a controlled servo motor with ball screw drive and measuring system with a positioning and repeat accuracy of +/- 0.2 mm. The Omron touchscreen controller can store up to 30 programs with 50 steps each. For additional flexibility, this series also offers hydraulic bundle clamping as an option. The manually set miter angle can be read on a digital display. The workpiece is clamped hydraulically.

  • Double-column design with precise linear guidance

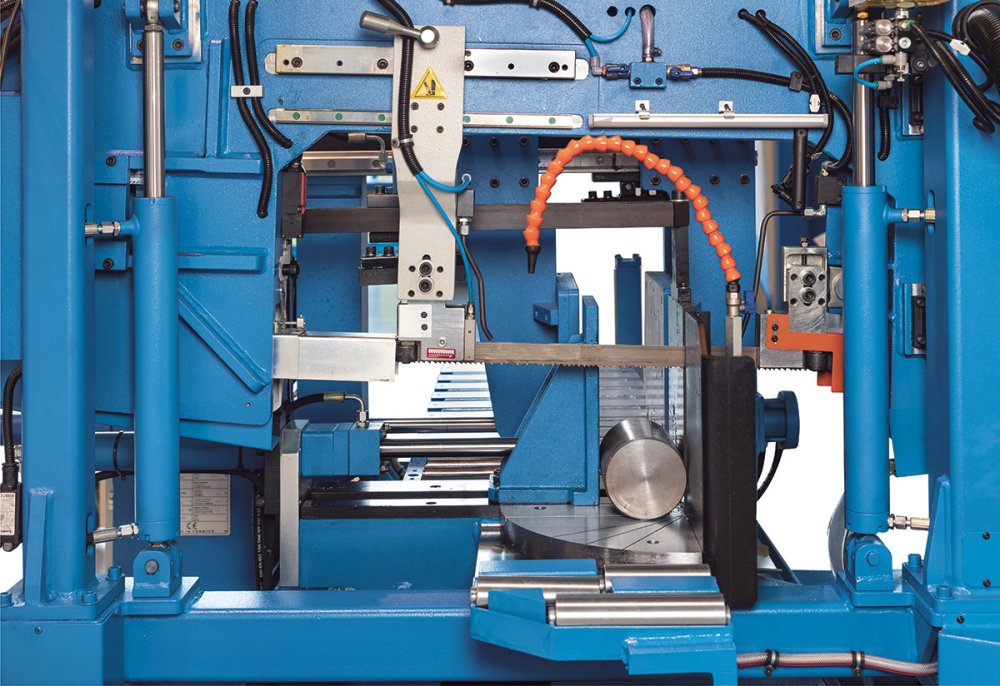

  • Miter cutting with hydraulic workpiece clamping and digital display

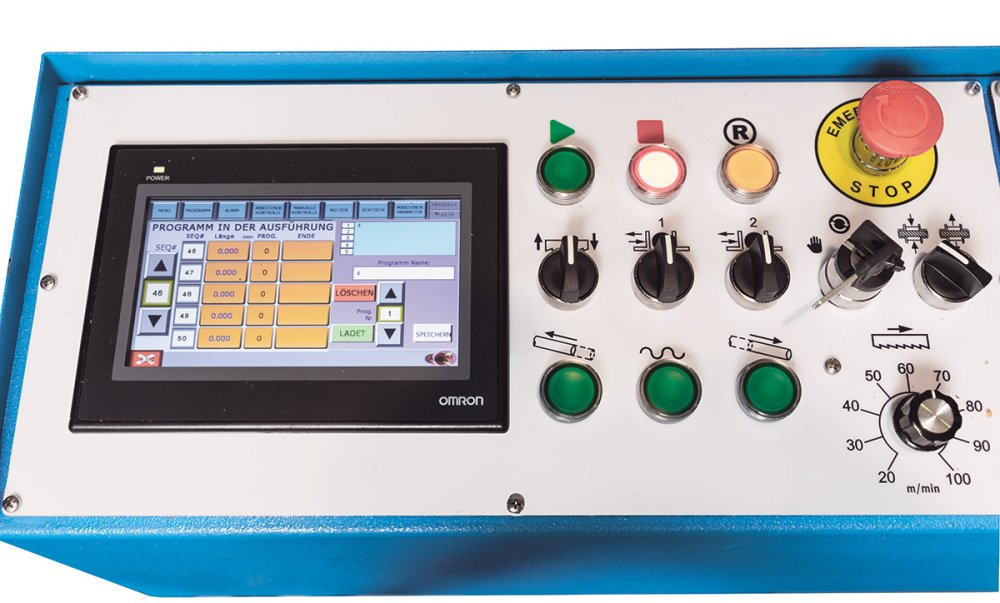

  • Omron touchscreen controller for fast programming and setup
  • Material servo-feeding for high precision +/-0,2 mm
  • Automated stroke height control with optical sensor
Cutting capacity 0° (round) 325 – 540 mm
Cutting capacity 30° (round) 325 – 540 mm
Cutting capacity 45° (round) 300 – 510 mm
Motor rating main drive 2,2 – 4 kW
Blade dimensions 4380 x 34 x 1,1 –
6000 x 41 x 1,3 mm
Weight 1860 – 4190 kg
