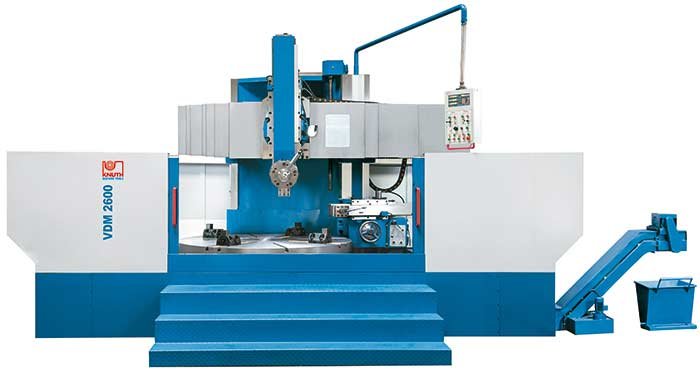

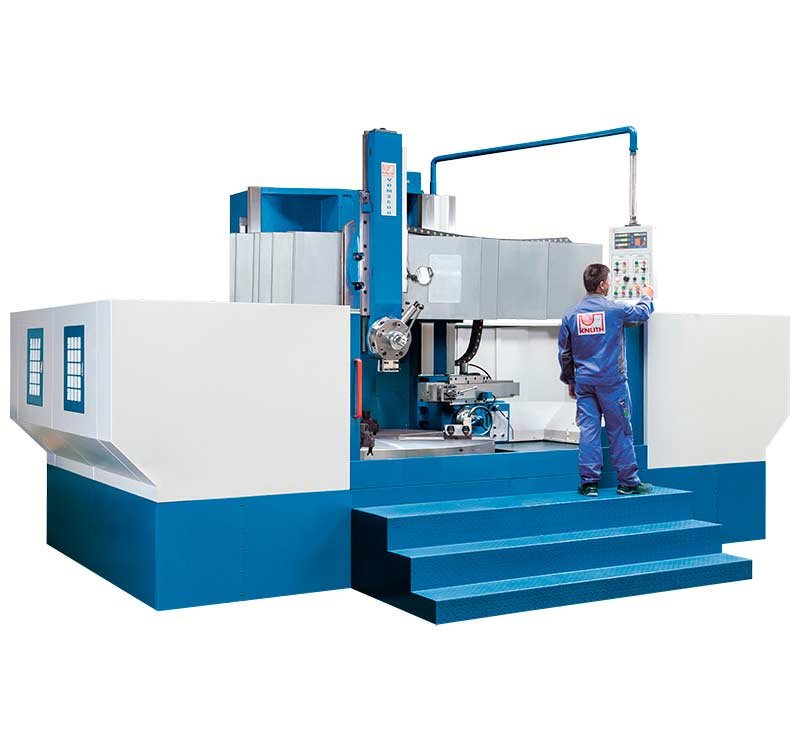

The VDM series of vertical lathes offers modern, conventional solutions for machining large workpiece diameters and heavy workpiece weights. Their design enables particularly easy and safe loading and unloading. The feed drive is a high-torque servo motor and a powerful hydraulic system clamps the crossbeam. The main drive provides high torque for heavy machining and a side support is available for machining the outer contour. The standard mounted 3-axis position indicator ensures precision.







  • Optimum assembly with crane and forklift
  • Infinitely variable feed control via servo motor
  • Long, sturdy vertical boom
  • Side support with boom and independent feed
  • Reduction gear drive for high torque
Rotating diameter (max.) 1250 – 2600 mm
Turning diameter of side tool holder 1000 – 2300 mm
Workpiece length (max.) 1000 – 1500 mm
Speed range 5 – 160
6,3 – 200 1/min
Motor rating main drive 22 – 37 kW
Weight 9000 – 27500 kg
