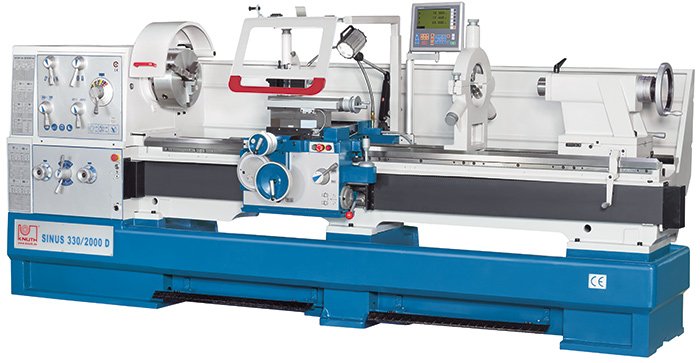

Sinus 330/2000 D KNUTH

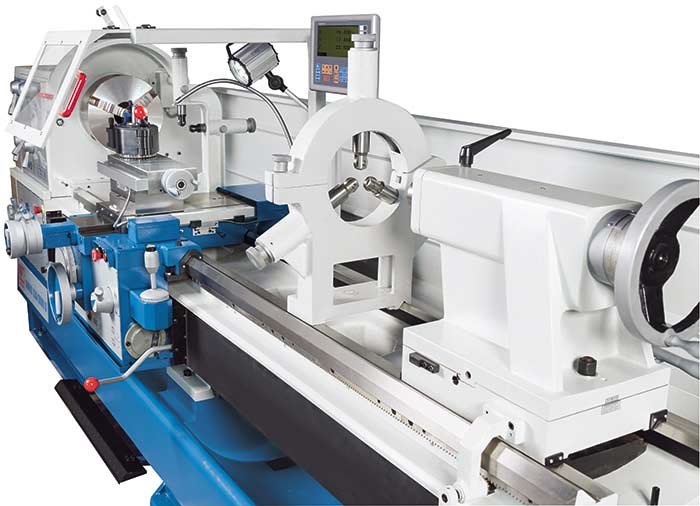

Sinus D is the largest series in the universal lathes segment. The construction follows a classic design but is based on a heavy, one-piece cast machine bed. As with heavy-duty lathes, the frictional connection between the motor and the spindle takes place via a manual multi-disc clutch. With integrated functions such as the removable bed bridge, rapid traverse and a taper turning device, this series offers optional solutions for machining long workpieces or large flanges.

  • One-piece heavy-duty cast bed for increased rigidity
  • Sturdy headstock design with large spindle bearings
  • Rapid feed on 2 axes for fast positioning
  • Taper turning attachment for additional applications
  • Well-designed safety functions

TECHNICAL SPECS (base)

Workpiece length (max.) 1500 – 3000 mm
Turning diameter over bed 660 – 800 mm
Turning diameter over support 440 – 570 mm
Spindle speed 25 – 1600 1/min
Motor rating main drive 7,5 kW
Weight 2800 – 3870 kg
