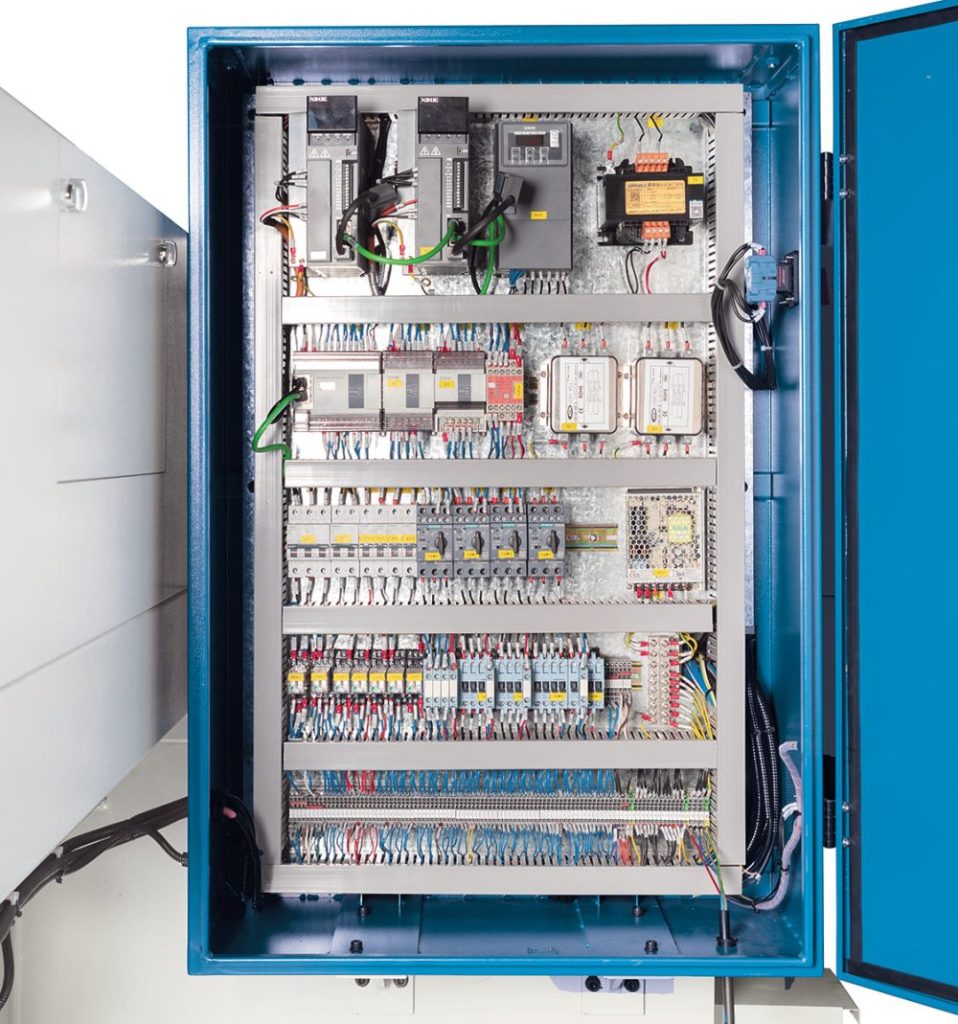

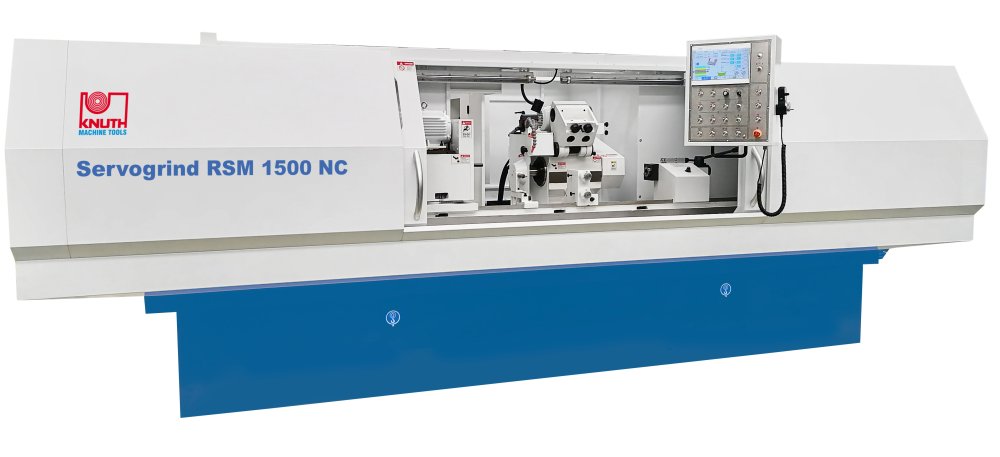

The Servogrind® RSM NC is a precision cylindrical grinding machine for long and heavy workpieces. Instead of a conventional hydraulic unit, however, the series has a modern servo motor drive for both axes, which raises the dynamics, efficiency and precision of the machine to a new level. The series is suitable for both single part and small batch production and offers additional flexibility with the internal grinding device. The solid construction with a large machine bed, ground guideways and powerful drives for the work spindle and grinding spindle has proven itself many times over. The modern NC control with touchscreen requires no programming knowledge, simplifies operation and increases productivity.
| Center height | 180 mm |
| Working spindle taper | 4 MT |
| Grinding length | 1000 – 1500 mm |
| Workpiece weight between centers (max.) | 150 kg |
| Grinding diameter | 8 – 320 mm |
| Grinding wheel dimensions | 400 x 50 x 127 – 400 x 50 x 203 mm |
