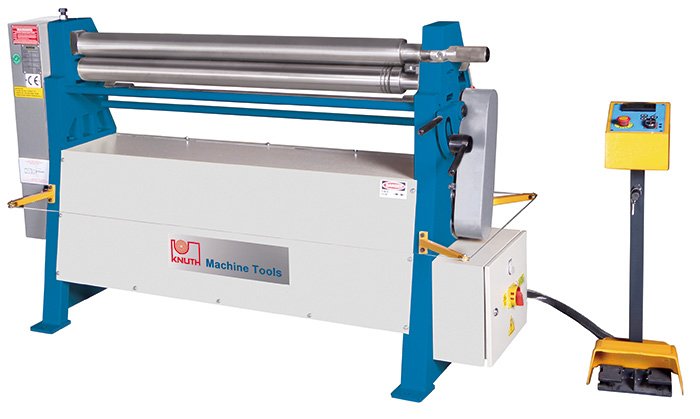

All machines in this series feature asymmetrical rolls. This geometry provides optimum traction even with thin metal sheets in the stretch-bending phase for high-precision bending. The rear roll is fed manually. The upper roll swivels outward for easy removal of tube-shaped bent workpieces.

  • Asymmetrical structure
  • Main motor with brakes
  • Hardened rollers with wire insertion grooves
  • Conical bender
Working length 1050 – 1550 mm
Plate thickness (max.) – 450 N/mm2 2,5 – 3 mm
Roll diameter 90 mm
Roller speed 6 m/min
Motor rating main drive 1,1 kW
Weight 480 – 580 kg
