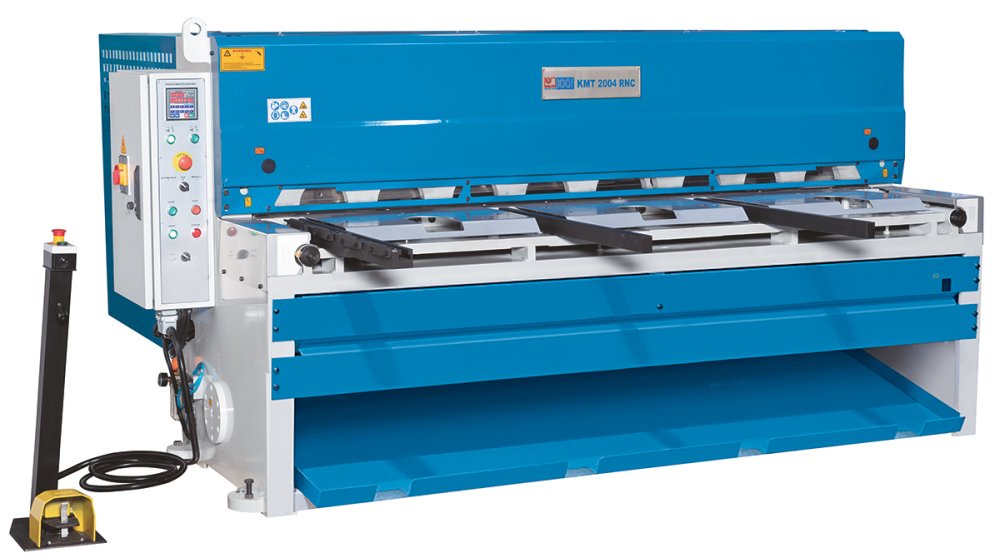

This model is part of the KMT RNC series and is an advanced, precision-machined plate shearing machine with premium components. It features a powerful drive for superior cutting performance. The rigid construction with sliding-block guided cutter bar and a straight cutting angle enables cuts with minimal torsion in the workpiece. The kerf can be adjusted manually, and back gauge positioning is NC-controlled. Handling plate sections is simplified enormously by the integrated “Return-to-Sender” function.
Working length | 1500 – 3060 mm |
Cutting angle | 1,3° – 2° |
Plate thickness (max.) – 450 N/mm2 | 4 – 5 mm |
Plate thickness (max.) – 700 N/mm2 | 2,5 mm |
Motor rating main drive | 7,5 – 11 kW |
Weight | 2500 – 4000 kg |
