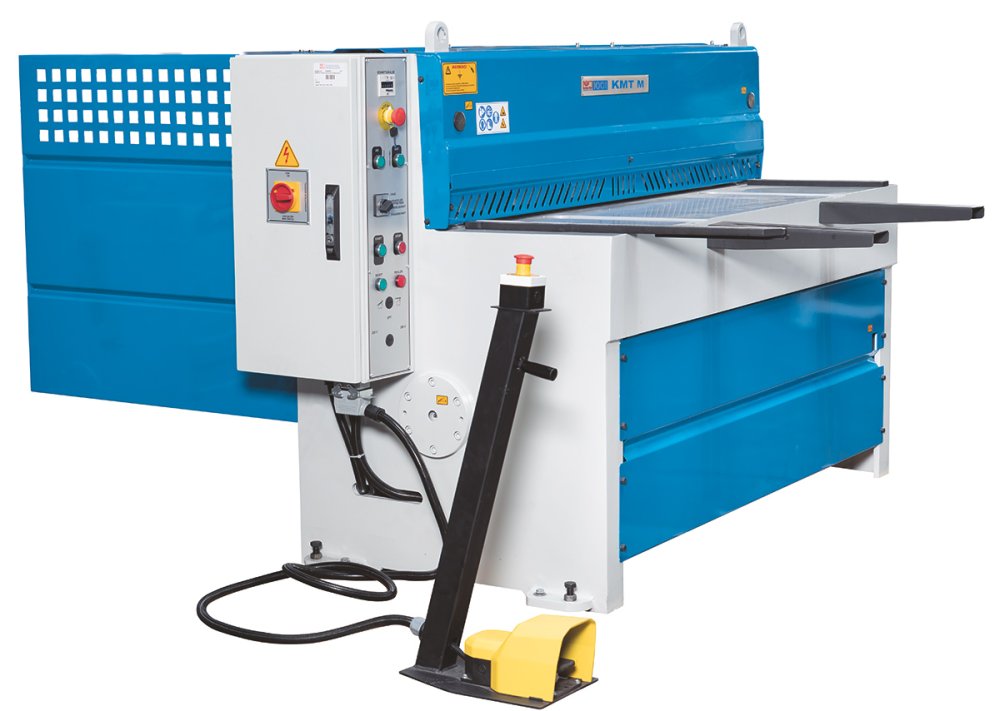

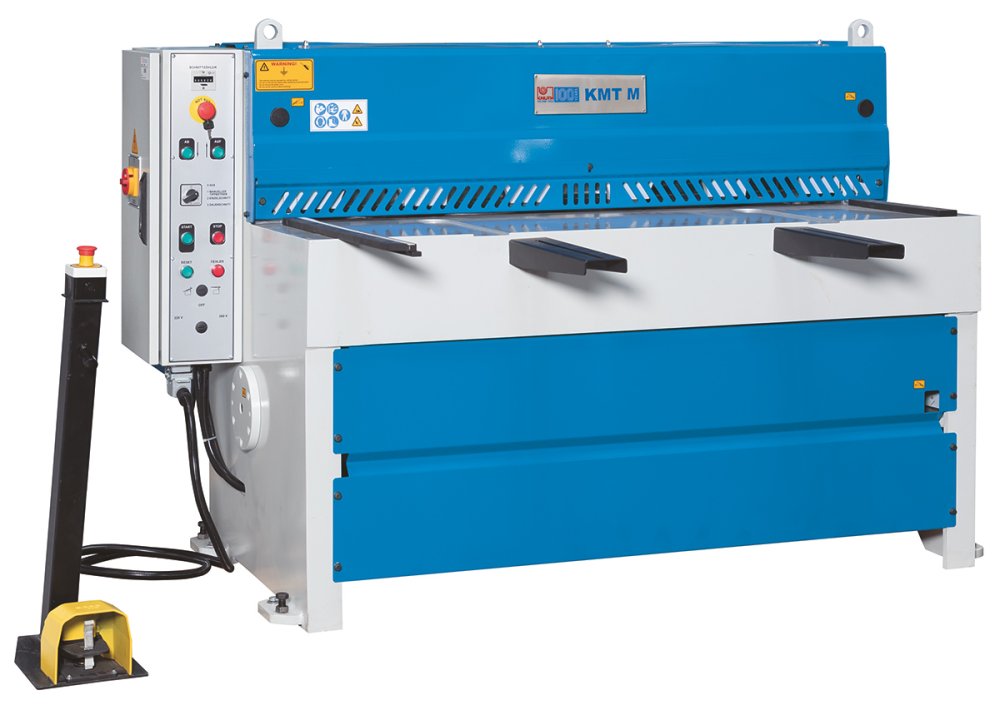

The KMT M series features a solid construction and is of high quality. These modern plate shears are equipped with a powerful drive motor, and a straight cutter angle ensures minimum workpiece torsion during cutting. The high-precision back gauge is positioned manually.











  • Solid steel weldment with sliding block guide
  • Cutters for stainless steel cutting are included
  • Reversible cutters with multiple cutting surfaces
  • Manual back gauge with travel display
  • Work area secured by light curtain
Working length 1360 – 2060 mm
Cutting angle 1,3° – 2°
Plate thickness (max.) – 450 N/mm2 3 mm
Plate thickness (max.) – 700 N/mm2 1,5 mm
Motor rating main drive 3 – 4 kW
Weight 1250 – 1750 kg
