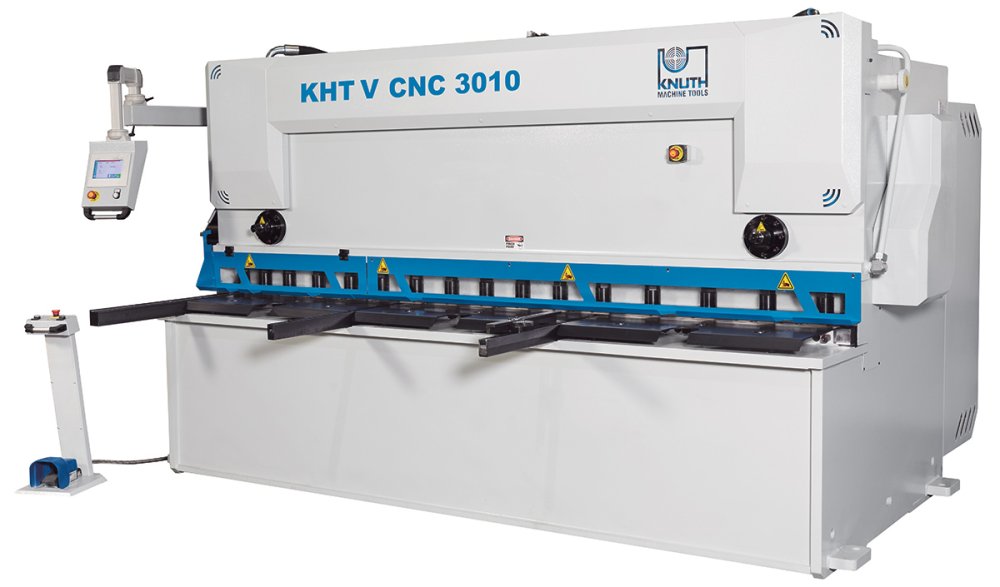

The guillotine shears of the KHT V CNC series are produced in a state-of-the-art manufacturing facility. The construction with a guided cutter bar with adjustable cutting angle guarantees minimal twisting in the workpiece and thus reduces rework. The control is operated on a touchscreen. Cutting gap, cutting angle and cutting length are automatically optimally positioned. The high-quality backgauge is robust and precise, and the standard blades are suitable for stainless steel. Additional accessories expand the range of applications of the guillotine shears.







  • Cybelec Touch 8 control
  • Controlled back gauge with preloaded ball screw
  • Controlled kerf adjustment
  • Controlled cutting angle adjustment
  • Knife suitable for stainless steel
Working lenght 3050 – 4100 mm
Cutting angle 0,5° – 2°
Plate thickness (max.) – 450 N/mm2 6 – 20 mm
Plate thickness (max.) – 700 N/mm2 4 – 13 mm
Motor rating main drive 11 – 45 kW
Weight 7800 – 28’000 kg
