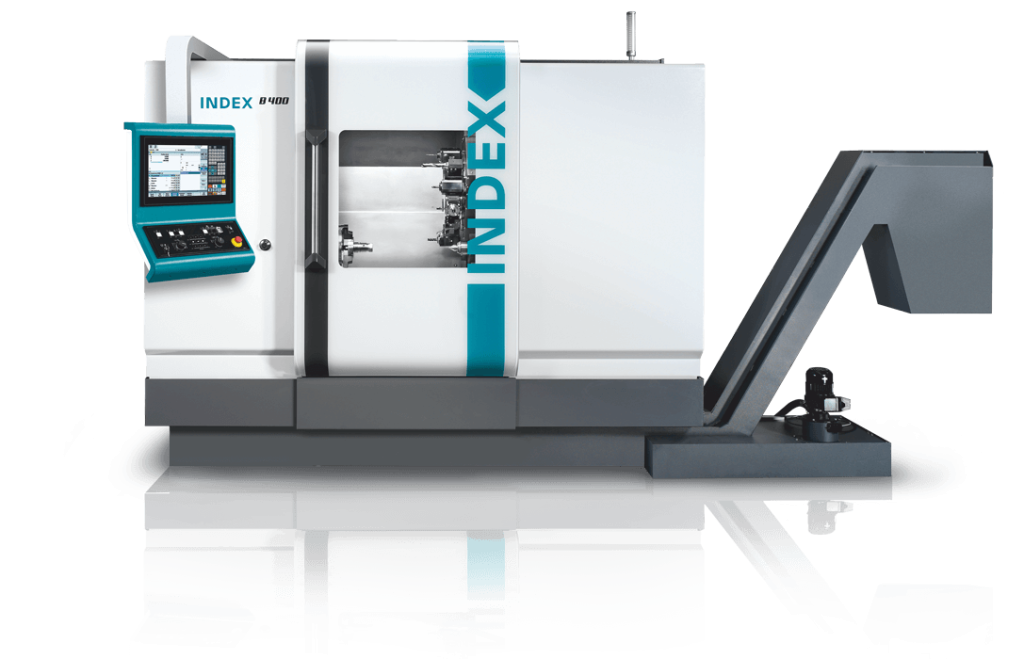

INDEX B400

The INDEX B400 represents a logical further development of proven manufacturing solutions within the INDEX Group. Individually equipped, this new flexible universal lathe takes its place both in tooling and prototyping, but also in production Decades of accumulated know-how is reflected in numerous design details, such as in a pocket in the panel above the mainspindle which ensures collision-free use of long boring bars.

Highlights

Clearly structured and ergonomic work area concept
Rigid mineral cast bed in 45° monoblock design for high accuracy
Work spindle with belt drive for high torques
Bar capacity dia. 82 mm, chuck up to dia. 315 mm
Orthogonal, linear Y-axis for high accuracy
NC tailstock with electrically controlled axis

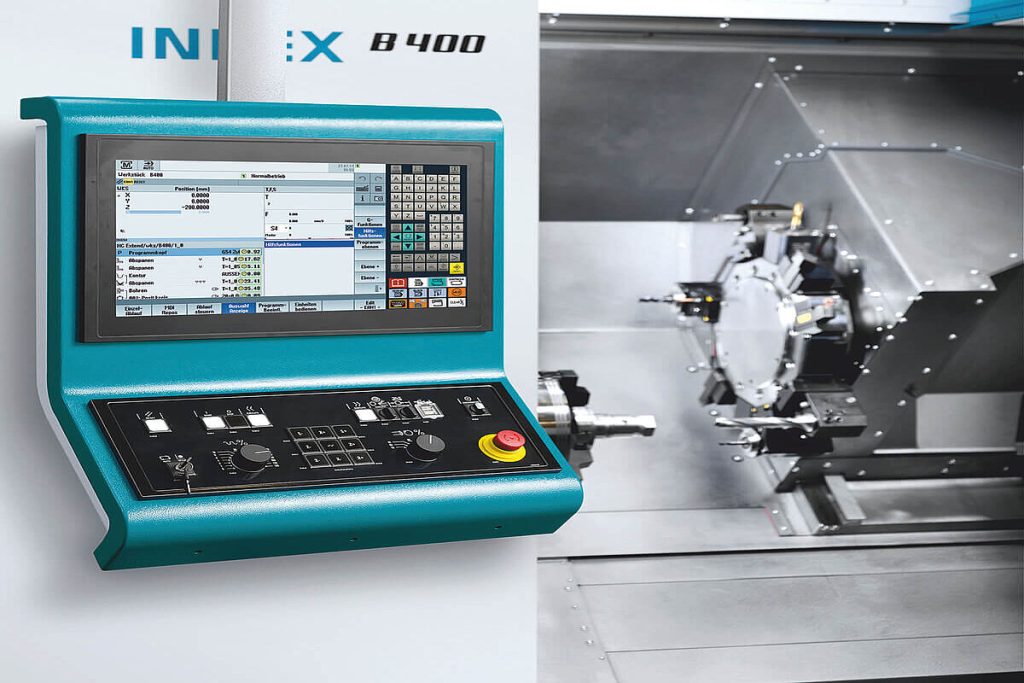

Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen – based on Siemens S840D sl

The components

Main spindle

Bar capacity dia. 82 mm, chuck up to dia. 315 mm
Speed 4,000 rpm
Spindle power 24 kW (40%)
Torque 550 Nm (40%)
Holding brake for indexing the axis

NC tailstock

Electronically freely positionable
Generously dimensioned roller guides
Electronically adjustable pressure force up to 10,000 N
Cone center MK 5 or SK 30

Star turret and compound slide setup / Disc turret

18 live tool stations
VDI 30 according to DIN 69880 with patented W-serration
X 360 mm / Y ±60 mm / turning length Z up to max. 750 mm
Machining possible up to 70 mm below turning center
6000 rpm, 8,8 kW, 19,5 Nm (25%)

Counter spindle

Spindle clearance dia. 65 mm, chuck up to dia. 175 mm
Speed max. 4,000 rpm
Spindle power 12 kW (40% duty cycle)
Torque 119 Nm (40% duty cycle)
Holding brake for indexing the axis

Technical data

Working area
Turning length	750 mm

Main spindle
Bar capacity	82 mm
Chuck diameter	315 mm
Max. speed	4000 apgr./min
Power at 100% / 40%	16 kW / 24 kW
Torque at 100% / 40%	375 Nm / 550 Nm

Counter spindle
Bar capacity	65 mm
Chuck diameter	175 mm
Max. speed	4000 rpm
Power at 100% / 40%	8 kW / 12 kW
Torque at 100% / 40%	79 Nm / 119 Nm

Tailstock
Feed force Z	10’000 N
Rapid traverse Z	8,5 m/min

Star turret VDI30
Number of stations	18
Max. speed	6000 rpm
Power at 25%	8,8 kW
Torque at 25%	19,5 Nm
Slide travel X, rapid traverse, feed force	360 mm / 40 m/min / 11’900 N
Slide travel Y, rapid traverse, feed force	± 60 mm / 20 m/min / 11’700 N
Slide travel Z, rapid traverse, feed force	750 mm / 40 m/min / 11’900 N

Star turret VDI40
Number of stations	18
Max. speed	5400 rpm
Power at 25%	10,5 kW
Torque at 25%	37 Nm
Slide travel X, rapid traverse, feed force	360 mm / 40 m/min / 11’900 N
Slide travel Y, rapid traverse, feed force	± 60 mm / 20 m/min / 11’700 N
Slide travel Z, rapid traverse, feed force	750 mm / 40 m/min / 11’900 N

Disc VDI40
Number of stations	12
Max. speed	5400 rpm
Power at 25%	10,5 kW
Torque at 25%	37 Nm
Slide travel X, rapid traverse, feed force	360 mm / 40 m/min / 11’900 N
Slide travel Y, rapid traverse, feed force	± 60 mm / 20 m/min / 11’700 N
Slide travel Z, rapid traverse, feed force	750 mm / 40 m/min / 11’900 N
