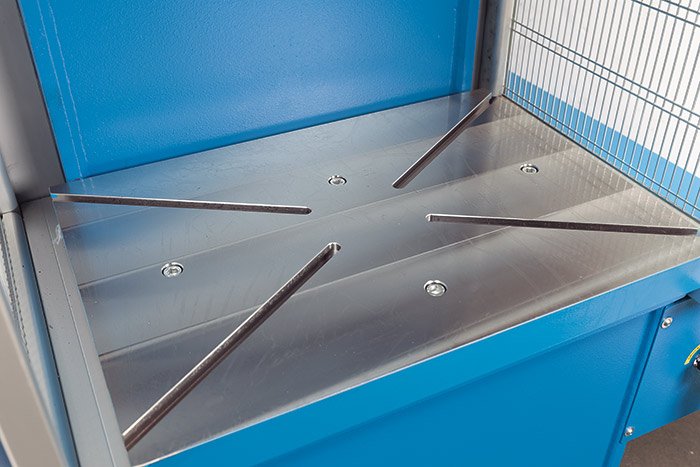

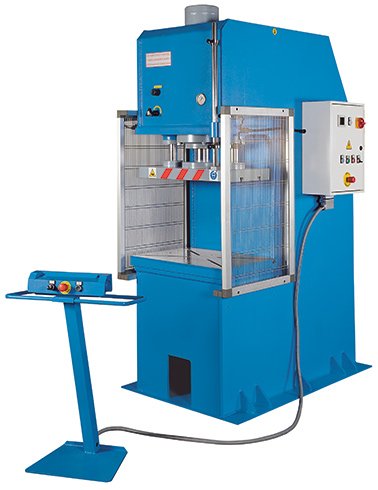

The HPK A series is a series of hydraulic presses with a C-shaped design for deep drawing, forming, and notching processes. These machines are manufactured in Europe, and all components and parts meet extremely strict quality requirements. The possible force ranges from 40 to 300 tons. The entire series has large ram plates on the cylinder and work table with clamping flutes for mounting tools and accessories. Mobile 2-hand operation guarantees safety, and the travel distance is defined with adjustable limit switches. KNUTH also offers customized solutions that are based on individual customer requirements.
| Pressure force | 40 – 300 t |
| Table dimensions | 700 x 500 – 1200 x 800 mm |
| Stroke | 500 mm |
| Stroke speed | 2 – 9 mm/s |
| Motor rating | 4 – 7,5 kW |
| Weight | 1500 – 11’200 kg |
