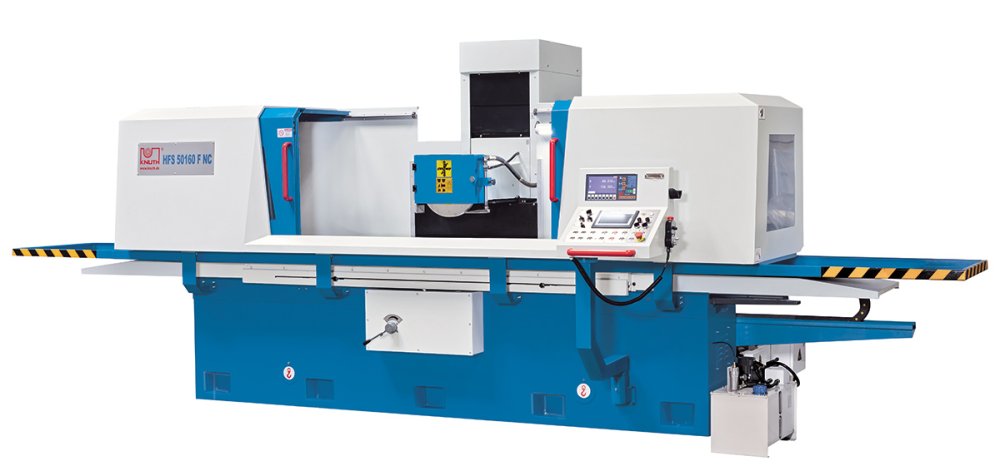

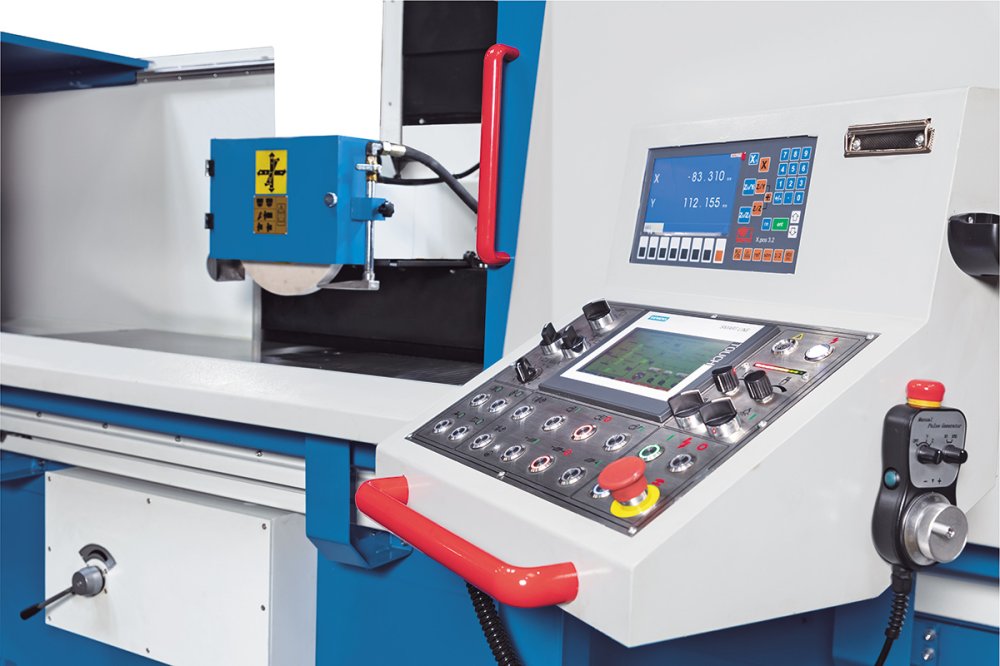

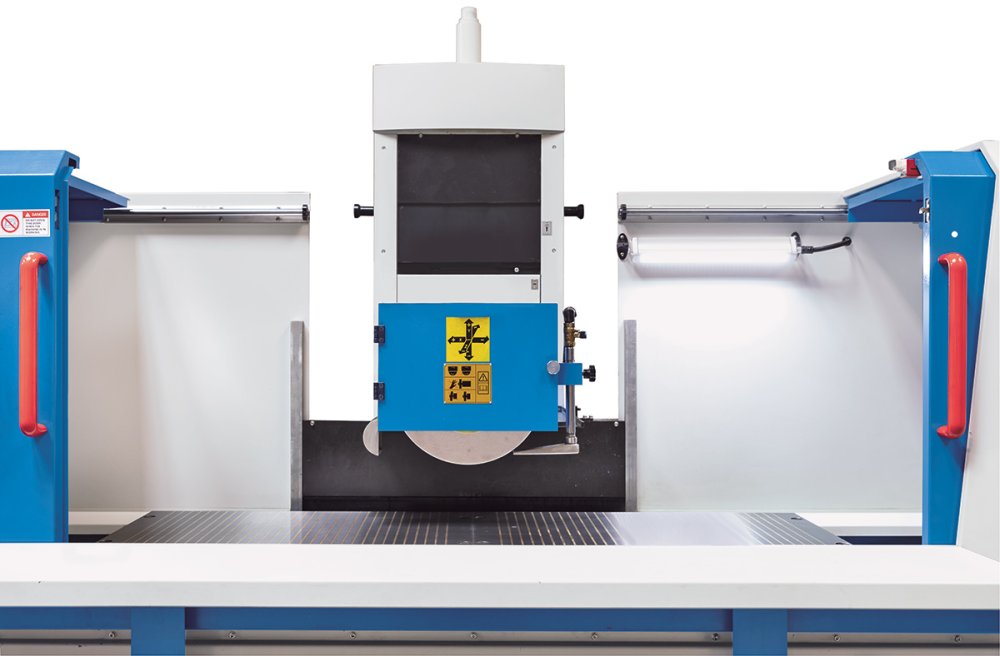

This series of surface grinders processes large and heavy workpieces with tolerances as required for precision surface grinding or for the preparatory processing step of lapping or polishing. The machine frame is designed in a cross-bed design with a movable column. This construction enables a long table guidance and thus the optimal introduction of weight force over the entire work area. The ability to switch between automatic or manual operation extends the scope for sample production, repair and training.
| Table dimensions | 500 x 1000 – 800 x 3000 mm |
| Spindle center-to-table distance | 600 – 920 mm |
| Travel X-axis | 1000 – 3000 mm |
| Travel Y-axis | 500 – 810 mm |
| Grinding wheels dimensions | 350 x 40 x 127 – 500 x 75 x 305 mm |
| Weight | 5500 – 14’000 kg |
