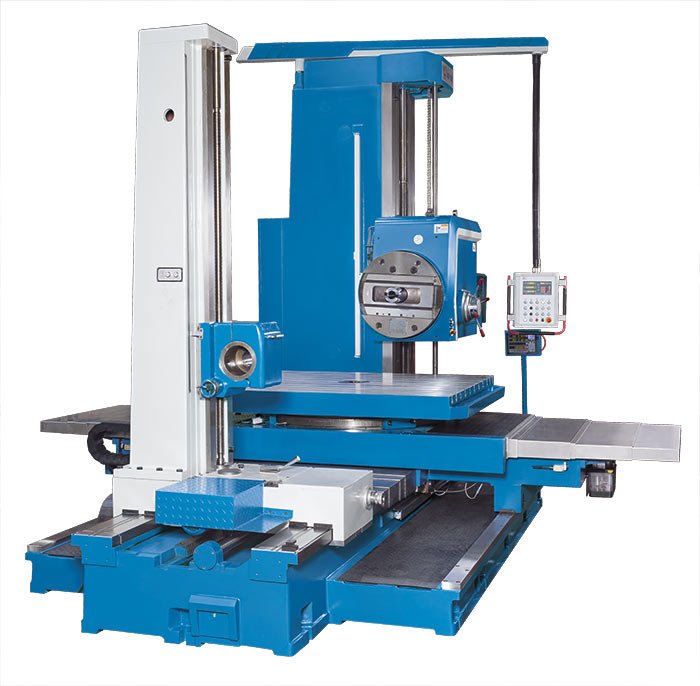

The BO series of conventional boring and milling machines with a fixed column is designed for horizontal multi-sided drilling and milling of workpiece weights of up to 10 tons. The movable table can rotate 360​​°. The drill head moves on the column and the spindle has a long stroke on the W-axis. Efficient machining and short non-productive times result from high drive power and automatic feeds on all axes with rapid traverses. In addition, these conventional boring mills have a facing slide with a long stroke.







  • Large work area with W-axis and facing slide
  • Thread cutting unit

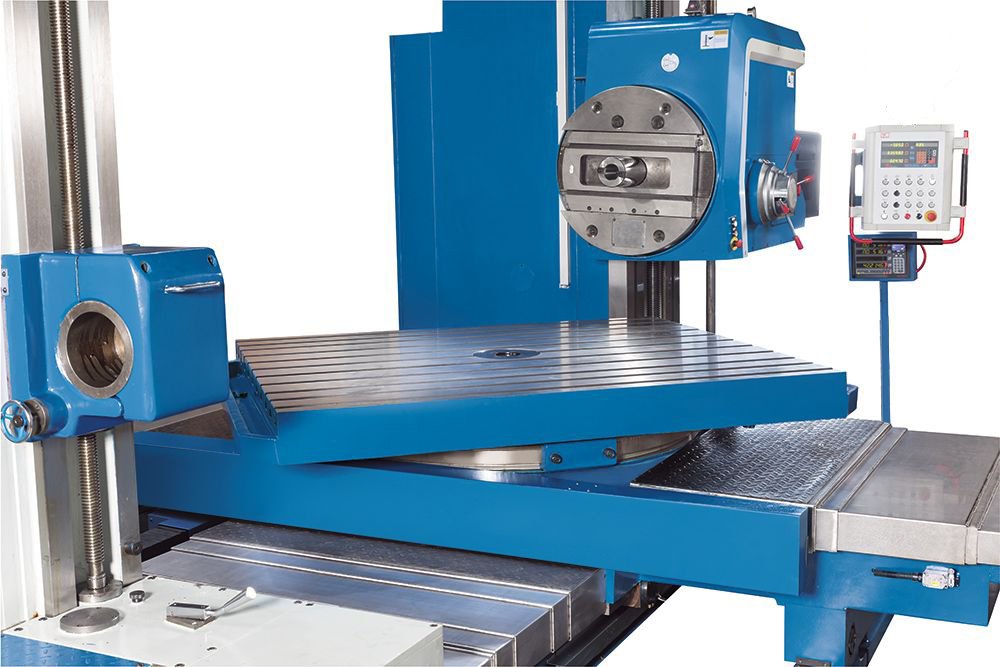

  • Rotatable clamping table with sighting device for 4 positions
  • Telescoping stainless steel covers on all guides
GTAble set up area 1600 x 1800 mm
Travel X-axis 2000 mm
Spindle diameter 130 mm
Spindle mount SK 50
Weight 29’300 kg
