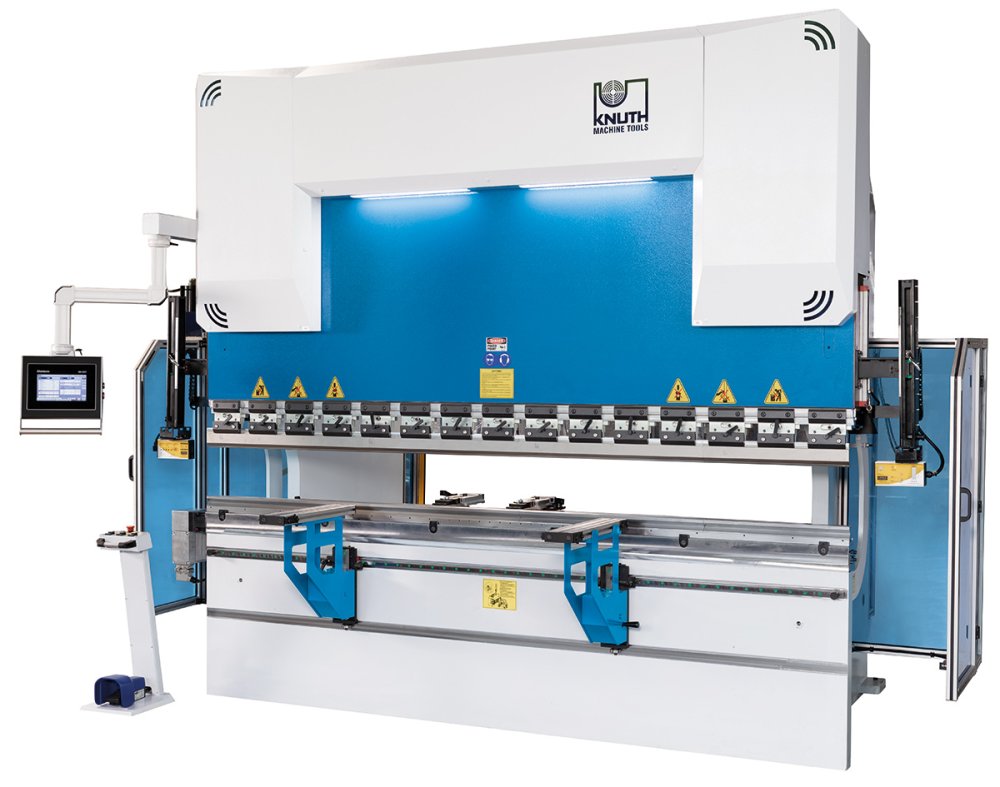

The AHK V CNC series models fulfill the most demanding requirements for modern press brakes according to European standards. These models were developed with advanced design technology and built on modern production lines resulting in superior quality, precision and reliability. All AHK V CNC series models feature a DELEM graphical touchscreen that provides efficient CNC programming tools and control over the entire bending process. Various back gauge options are available so these press brakes easily can be adapted for a wide spectrum of requirements.







  • Superior machining quality
  • Premium hydraulic and electronic components

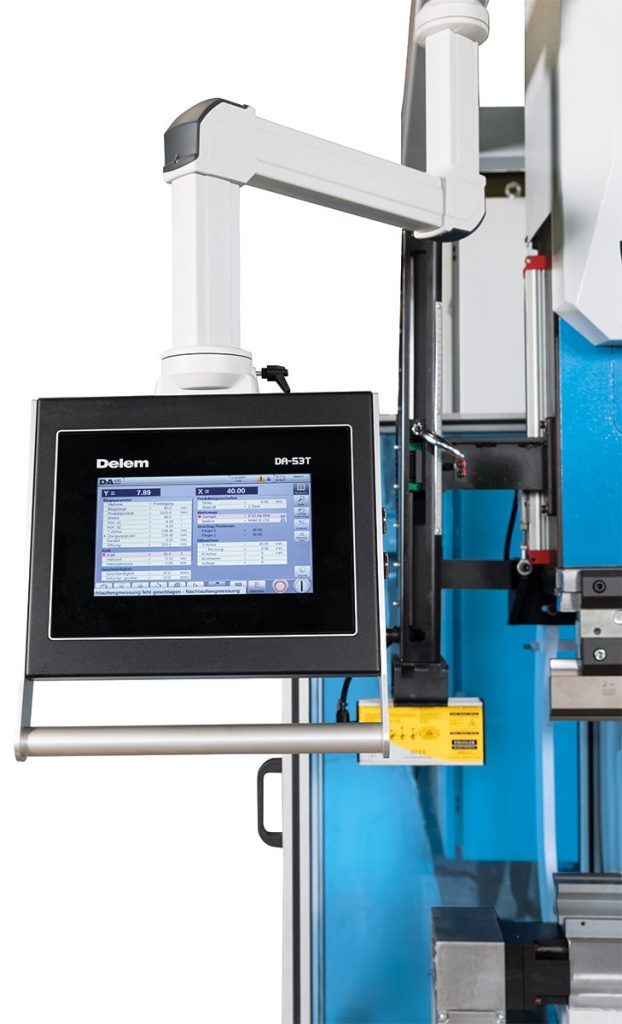

  • Modern DELEM graphical touchscreen
  • Motorized crowning included in standard equipment
  • Laser optical safety system at the tool
  • Time-saving detailing solutions
Press force 100 – 400 t
Brake length 2600 – 4100 mm
Distance between columns 2200 – 3600 mm
Stroke 265 – 310 mm
Motor rating main drive 11 – 37 kW
Weight 7200 – 20’000 kg
