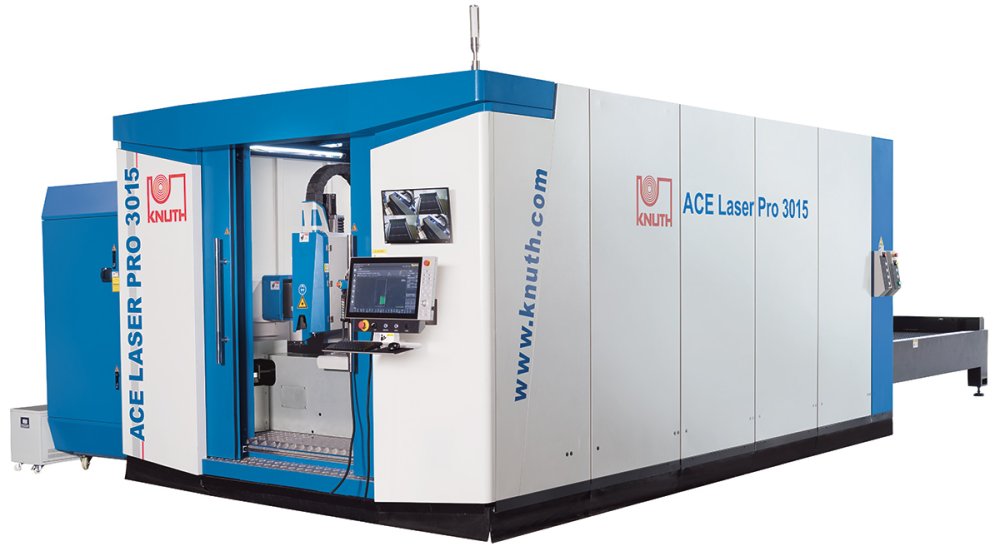

ACE-Laser PRO series machines feature a cutting system that sets new standards for price and performance. They have been designed to optimize cutting processes and provide superior parts quality. These machines guarantee high productivity, safety, and reliability. Extensive standard equipment ensures efficiency and versatility. These characteristics make the ACE-Laser the first choice for industrial laser cutting applications – from complex workpieces with lot size 1 to large-scale series productions in the electronics, aerospace or automobile industries.
| Workpiece weight (max.) | 1500 – 5000 kg |
| Travel X-axis | 1550 – 6350 mm |
| Travel Y-axis | 2550 – 4100 mm |
| Rapid feed X-/Y-axis | 180 – 200 m/min |
| Z-axis rapid feed | 35 m/min |
| Fiber laser | 12’000 – 30’000 W |
| Weight | 7500 – 13’500 kg |
